Diamama Red Golf Shaft Review

Mitsubishi Diamana R – Third Generation

By Russ Ryden, A Golf Digest America’s 100 Best Clubfitter
Fit2Score, Dallas Fort Worth, Texas

Diamana3Gen_R_Image

The last of the third Generation Mitsubshi Diamana driver shafts released in September 2014. The Diamana ilima, the second generation Diamana Red Board has long been my favorite fairway shafts. The expression, ‘if its not broken don’t fix it, applies the the third generation Diamana R. It changes very little over the second generation design. The butt stiffness is a little softer, allowing for a little more load at the start of the downswing. New material, high modulus 80 ton fiber is use in the hoop wraps in the shaft. In the butt, the hoop strength increases while the stiffness decreases. We are seeing more creative designs in carbon fiber golf shafts. Design is limited by the creativity of the shaft engineer and by the willingness of the golfing public to embrace these new products at ever increasing costs. At $400, the Diamana R, one of the greatest fairway shafts I know of, is beyond the typical $300 price of the off the rack fairway. You get what you pay for, and in this case, in the 70 and 80 gram models, you are paying for tip torque low enough to control the weight of a 3 wood head.

This is a high launch shaft. For those who hit their woods off the turf, where a downward angle of attack is all that is possible, a high launch shaft is a good thing. With a driver, and an upward angle of attack we would seek a lower launching design. But with a fairway, this is my design of choice.

MRC_DiamanaR_TbGr3gMDI

I checked 10 shafts, one of each weight and flex, the average radial consistency was 99.6% with a standard deviation of 0.2%. That is an example of the made in Japan tradition of excellence we have historically seen from Mitsubishi Rayon. This is the first shaft I know of to use 80 ton material. It is too stiff to be used in the linear and bias plies. It is used to create hoop strength. Because it is thin and has no open space like multi axis weaves it creates high hoop strength while leaving the shaft designer the space inside the multi layered wall to achieve the linear and torsional strengths he is seeking to achieve. All while creating a smooth lose of stiffness down the shaft and the unique Mitsubishi feel.

New to third generation Diamana R series are 50 gram shafts. The line between the ultra light driver shafts and light weight versions of standard shafts is getting blurry. The Diamana R series extends the profiles consistently into the 50 gram versions. Those with slower drive swing speeds that need launch and spin can get it without having to accept a high torque tip.

Now that the third generation Diamana release is complete, lets compare the three designs by looking at the 60 gram version of each shaft.

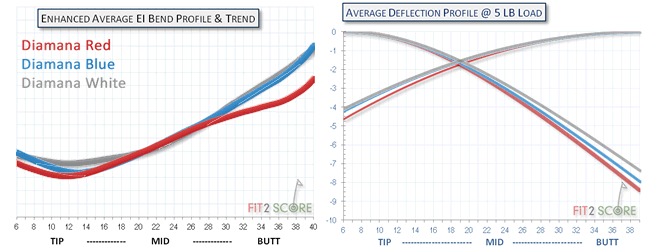

Diamana3Gen_60_RWBThese shafts are not as different as they once were. At least in the 60 gram versions. The Diamana B series was reviewed earlier as was the Diamana W. The profile of the Diamana W changes significantly in the 70 and 80 gram versions. But as you can see here, in the 60 gram version is it just a little higher launching than the Diamana W. The Diamana R is a different shaft. Softer handle, quicker loss of stiffness from mid to tip. All three shafts get stiffer as they approach the tip. If I want a stiffer shaft, I will always simply change to the next step on the stiffness progression, either getting the heavier of the stiffer model before I would consider tipping these shafts.

Graphite Design Tour AD SuperLite Driver Shaft Review

Graphite Design Tour AD SLII Driver Shaft

By Russ Ryden, A Golf Digest America’s 100 Best Clubfitter
Fit2Score, Dallas Fort Worth, Texas

GD_TourAD_SLII_ImageGraphite Design added a light weight shaft to the popular Tour AD Line in 2014. This shaft, like many others in the light weight category, ranges from 50g to 60g, with stiffness corresponding to weight. In this weight range, we see higher torques, but not so high that I would be concerned about head stability. These shafts are designed for swing speeds in the 60 to 85 mile per hour range. The 60g SR flex extends to the 90 mph range. My swing speed in in the high 90’s with the occasional 102 showing up and I am playing an ultra premium 59g shaft. Light weight driver shafts, made out of high quality carbon fiber are the future of golf for many of us. That couple of grams I lost in my latest shaft change has given me a new range of control and feeling without any increase in dispersion. In fact, I am hitting more fairways than I ever have now that I changed to a sub 60g shaft.
GD_TourAD_SLII_EiTBGjFsHpTbRadial integrity of the Graphite Design Tour AD SLII is exceptional, the review samples averaged 98.5% with a 0.4% standard deviation. The hoop strength is high for this weight range, and distinctly different in the 4 vs 5 models. This measurement is new for my knowledge base.

This is a unique design, there is no close match in the database. The tip to butt ratio and the tip load and butt load deflection analysis shows it to be a high launch high spin design consistent with what Graphite Design is saying about the shaft. In the speed range it is designed for, that is what will optimize distance. Tip torque is tight. Butt torque is in the range that transmits adequate feel in light weight shafts. If your swing speed is below 90 mph and you are looking for a quality shaft this is one you should be testing.
